Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox

SwingFrame Edge-Lit T4 Lightbox - Wood 361 with Matboard

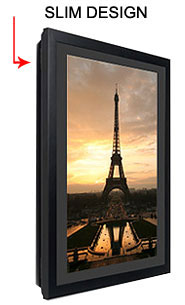

SwingFrame Décor Edgelit T-4 Light Box Display Frame –Wood #361 Wood Light Box Display Frames from SwingFrame Mfg. includes our swing-open #361 edgelit lightbox display with a slim 2” frame depth. This
indoor wall mount light box frame features a contemporary flat-top 1” wide wood profile and a beveled mat
board border. Combined, the mat and frame present a classic picture frame style. With 10 standard elegant
finishes to choose from, this wood lightbox display that fits attractively and comfortably into a wide-range
of interior decors.

Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox





Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox


Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox


Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox		 SwingFrame Edge-Lit T4 Lightbox - Wood 361 with Matboard Specifications

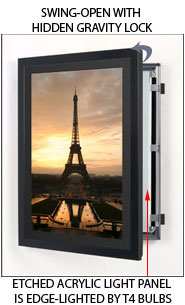

Patented swing-open system features concealed hinges and Gravity Lock
UL listings for all components
Acrylic panel with grid allows for even light distribution
Low maintenance replaceable T-4 linkable fluorescent bulbs
Magnetic clamps on frame door allow for easy poster changes
Beveled Matboard - Complimentary to frame finish
Window: .090 Break Resistant Acrylic included, perfect for high traffic or public environments
Electrical: 120V / 50 - 60Hz
Built-in silent electronic ballast - flicker free
Fluorescent Lamps - Cool White T-4 (6400K)
Lamp life - 16,000 hours
White Electric Cord: 6 ft., 2 prong
Cord Exit: Center Back (unless otherwise specified)
Installs easily (Mounting Hardware included)
Light Box Display Frames: Slim, Wood Lightbox 361 by SwingFrame Mfg. | Poster Light Box | Advertising Lightbox

Custom Options
Side Plunge Lock and Key
Custom sizes: Up to 48" x 96"

10 Lightbox Wood Frame Finishes
Click on each finish to view an enlarged view

black-SwingFrame-edge-lit-T4-lightbox-wood-361 charcoal-SwingFrame-edge-lit-T4-lightbox-wood-361 Cherry-SwingFrame-edge-lit-T4-lightbox-wood-361 dark-green-SwingFrame-edge-lit-T4-lightbox-wood-361 dark-mahogany-SwingFrame-edge-lit-T4-lightbox-wood-361
Black Charcoal Cherry Dark
Green 		Dark
Mahogany
honey-pecan-SwingFrame-edge-lit-T4-lightbox-wood-361 Natural-clear-SwingFrame-edge-lit-T4-lightbox-wood-361 rich-walnut-SwingFrame-edge-lit-T4-lightbox-wood-361 walnut-stain-SwingFrame-edge-lit-T4-lightbox-wood-361 white-wash-SwingFrame-edge-lit-T4-lightbox-wood-361
Honey
Pecan 		Natural
Clear 		Rich
Walnut		 Walnut
Stain		 White-
Wash

Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

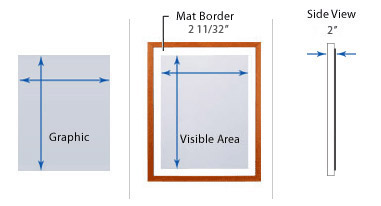

Size Chart

Model Insert Size Viewable Area Overall Size
SFLB361-T4-1117 11" x 17" 9" x 15" 16 7/8" x 22 7/8"
SFLB361-T4-1824 18" x 24" 16" x 22" 23 7/8" x 29 7/8"
SFLB361-T4-2228 22" x 28" 20" x 26" 27 7/8" x 33 7/8"
SFLB361-T4-2424 24" x 24" 22" x 22" 29 7/8" x 29 7/8"
SFLB361-T4-2430 24" x 30" 22" x 28" 29 7/8" x 35 7/8"
SFLB361-T4-2436 24" x 36" 22" x 34" 29 7/8" x 41 7/8"
SFLB361-T4-2448 24" x 48" 22" x 46" 29 7/8" x 53 7/8"
SFLB361-T4-3040 30" x 40" 28" x 38" 35 7/8" x 45 7/8"
SFLB361-T4-3648 36" x 48" 34" x 46" 38 7/8" x 53 7/8"
SFLB361-T4-4060 40" x 60" 38" x 58" 45 7/8" x 65 7/8"
